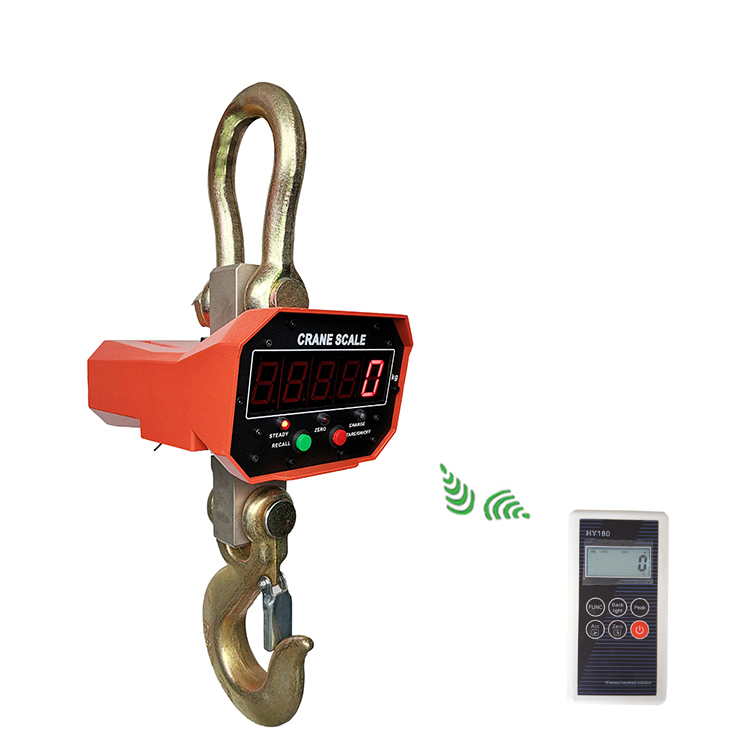

OCS-ZS-1/2/3/5t & HY180
- Accuracy class according to international standard three scales .
- Battery charging time of about 70 hours working time
- Safe overload 150% F.S
- Destruction of overloading
- 300% F.S
- Operating temperature -10°C ~ 50°C
- Environment Humidity <90% R.H
- Monitor specifications 5 30mm (1.2 ” ) LED high brightness displays.
- Reading stabilization time <3S
- Remote distance <25M
Call for More Details
Description

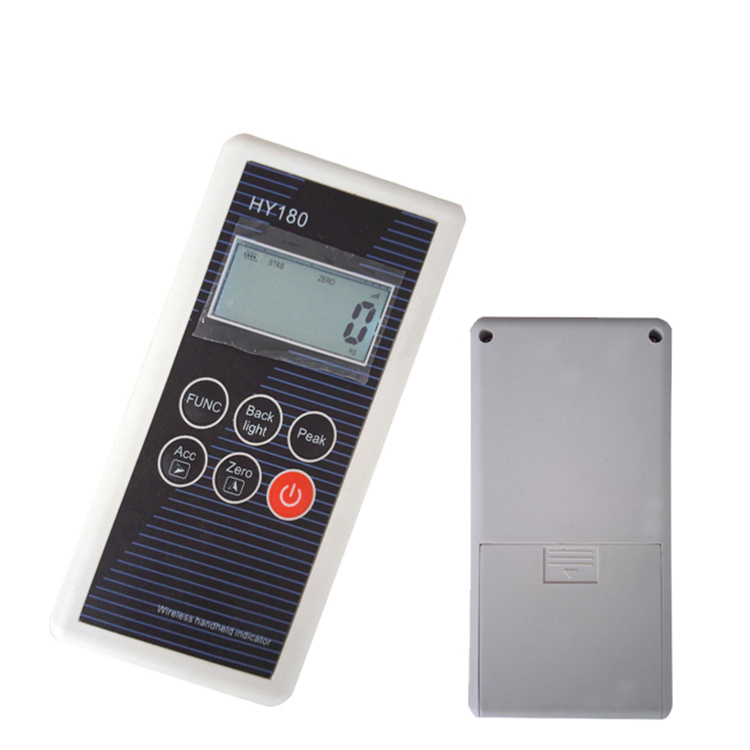

HY180 Recieve Indicator Specification:
| Display | LCD ,6 digit display |
|---|---|
| Weighing Units | kg/lb |
| Division | 1/2/5/10/20/50/100 optional |
| A44Dimension(mm) | 135*70*24mm |
| Power supply | DC1.5v AA(5#) X 3 |
| External Interface | USB interface or RS232 interface |
| Printer | none |
| Operating temperature | -25°C~50°C, RH 10%~85%, Non- condensing |
| Storage temperature | -30°C~55°C, RH 10%~85%,Non- condensing |
| Communication | Wireless interface,434M~470MHZ |
OCS-ZS Specification:
| Model | OCS-ZS-1 | OCS-ZS-2 | OCS-ZS-3 | OCS-ZS-5 | OCS-ZS-10 |
|---|---|---|---|---|---|
| Max Cap.(Kg) | 1000 | 2000 | 3000 | 5000 | 10000 |
| Min. Weigh (Kg) | 10 | 20 | 20 | 40 | 100 |
| Division (Kg) | 0.5 | 0.5 | 1 | 1 | 2 |
| Total Display Counts (N) | 2000 | 2000 | 3000 | 2500 | 2000 |
