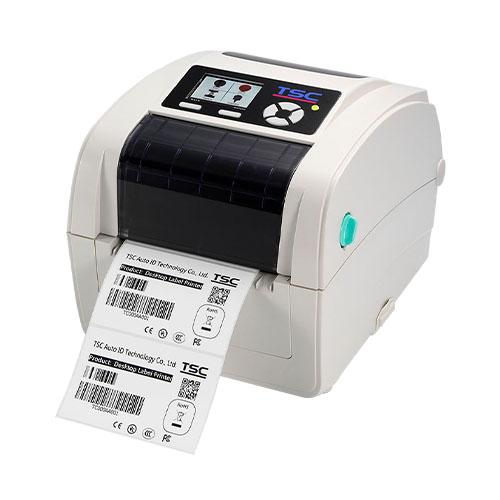

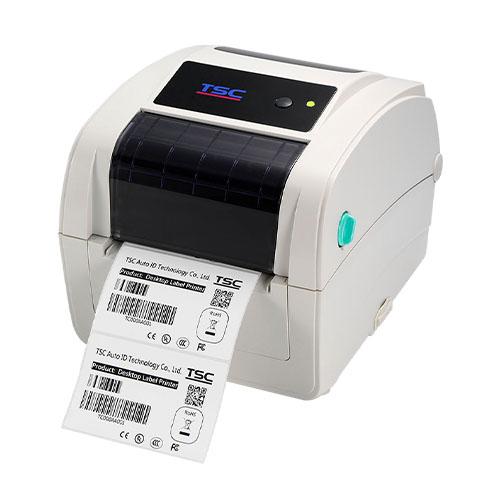

TC Series 4-Inch Performance Desktop Printer
- Based on the bestselling TTP-245C Series with enhanced features.
- Compact design with durable, reliable, and fast performance.
- Prints 4-inch-wide labels, tags, or receipts at up to 6 inches per second.
- Offers excellent price-performance in the desktop printer market.

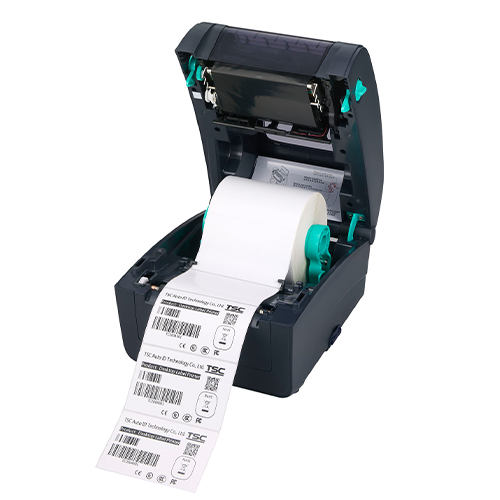

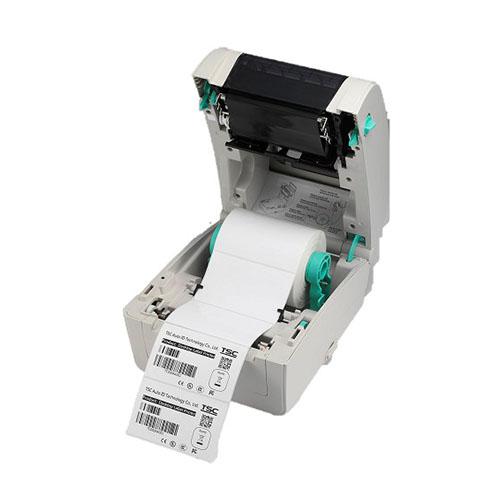

- Easy media and ribbon installation with support for 110-meter thermal transfer ribbons.
- Media cabinet holds up to 5-inch diameter label rolls with center-biased loading.
- Standard interfaces: Ethernet, USB 2.0, USB Host, RS-232 Serial.
- Optional external Bluetooth connectivity available for the entire series.
Call for More Details
Description
| TC200 | TC210 | TC300 | TC310 | |
|---|---|---|---|---|
| Resolution | 203 dpi (8 dots/mm) | 203 dpi (8 dots/mm) | 300 dpi (12 dots/mm) | 300 dpi (12 dots/mm) |
| Print Method | Direct thermal/Thermal transfer | Direct thermal/Thermal transfer | Direct thermal/Thermal transfer | Direct thermal/Thermal transfer |
| Display | LED with buttons | Color LCD with buttons | LED with buttons | Color LCD with buttons |
| Hardwire Connectivity | Ethernet | Ethernet | Ethernet | Ethernet |
| Parallel port | Parallel port | Parallel port | Serial RS-232 | |
| Serial RS-232 | Serial RS-233 | Serial RS-234 | USB | |
| USB | USB | USB | USB Host | |
| Wireless Connectivity | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Wi-Fi with Bluetooth | ||||
| Enterprise Printer Management | TSC Console | TSC Console | TSC Console | TSC Console |
| Type | Desktop | Desktop | Desktop | Desktop |
| Max. Print Speed | Up to 6 ips (152 mm/s) | Up to 6 ips (152 mm/s) | Up to 4 ips (102 mm/s) | Up to 4 ips (102 mm/s) |
| Max. Print Width | 4.25" (108 mm) | 4.25" (108 mm) | 4.16" (105.7 mm) | 4.16" (105.7 mm) |
| Max. Print Length | 90" (2,286 mm) | 90" (2,286 mm) | 40" (1,016 mm) | 450" (11,430 mm) |
| RAM | 8 MB SDRAM | 64 MB SDRAM | 8 MB SDRAM | 64 MB SDRAM |
| Flash | 4 MB | 128 MB | 4 MB | 128 MB |
| Expandable Flash | SD memory card reader; up to 4 GB | SD card reader; up to 32 GB | SD memory card reader; up to 4 GB | SD card reader; up to 32 GB |
| Optional Cutter | Guillotine cutter (full-cut) | Guillotine cutter (full-cut) | Guillotine cutter (full-cut) | Guillotine cutter (full-cut) |
| Internal Label Capacity | 5" (127 mm) OD | |||
| Max. Media Width | 0.79" - 4.4" (20 - 112 mm) | |||
| Media Type | Continuous; Die-Cut; Black Mark; Fan-Fold; Notch | |||
| Max. Ribbon Length | 110 Meters | |||
| Ribbon Width | 1.57" - 4.33" (40 - 110 mm) | |||
| Media Core Diameter | 1" - 1.5" (25.4 - 38 mm) | 1.0" - 1.5" (25.4 - 38 mm) | 1" - 1.5" (25.4 - 38 mm) | 1" - 1.5" (25.4 - 38 mm) |
| Construction | Clamshell with double-walled plastic | Clamshell with double-walled plastic | Clamshell with double-walled plastic | Clamshell with double-walled plastic |
| Programming Languages | TSPL-EZD | TSPL-EZD | TSPL-EZD | TSPL-EZD |
