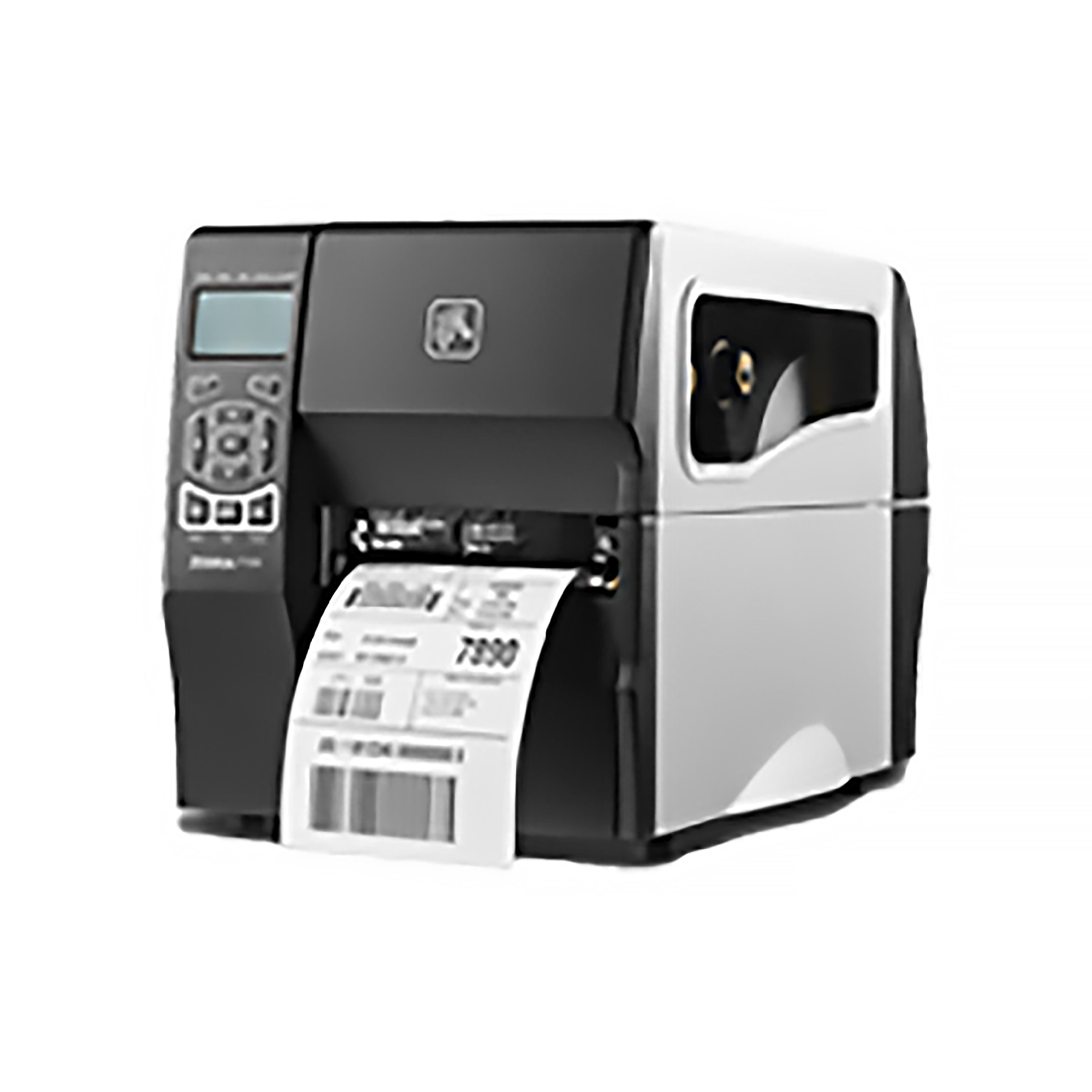

ZT230 Industrial Printer
- designed for durability, reliability, and ease of use in medium-duty labeling applications.
- Ideal for manufacturing, transportation, and warehouse environments, this printer combines high-quality construction with user-friendly features.
- The compact design reduces the footprint while providing fast, accurate printing of barcodes, text, and graphics.
Call for More Details
Description
| Dimensions | Thermal Transfer: |
|---|---|
| 17 in. L x 9.75 in. W x 10.9 in. H | |
| 432 mm L x 248 mm W x 277 mm H | |
| Direct Thermal: | |
| 17 in. L x 9.75 in. W x 10.9 in. H | |
| 432 mm L x 248 mm W x 277 mm H | |
| Weight | Thermal Transfer: |
| 20 lbs. / 9.1 kg | |
| Direct Thermal: | |
| 20 lbs. / 9.1 kg | |
| Resolution | 203 dpi / 8 dots per mm |
| Optional: 300 dpi / 12 dots per mm | |
| Memory | 128 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in. / 104 mm |
| Programmable Print Speed | 6 in. / 152 mm per second (203 dpi) |
| 4 in. / 102 mm per second (300 dpi) | |
| Media Sensors | Transmissive |
| Reflective | |
| Firmware | ZPL II; Zebra Global Printing Solution |
| Maximum Label Length | 203 dpi: 157 in. / 3988 mm |
| 300 dpi: 73 in. / 1854 mm | |
| Media Width | 0.75 in. / 19.4 mm to 4.50 in. / 114 mm |
| Media Roll Size | 8 in. / 203 mm outer diameter |
| Core inner diameter: 3 in. / 76 mm | |
| Thickness | 0.003 in. / 0.076 mm to 0.010 in. / 0.25 mm |
| Media Types | Continuous, die-cut, black mark, notch, tag stock |
| Ribbon Outside Diameter | 2.6 in. / 66 mm |
| Maximum Ribbon Length | 1476 ft. / 450 m |
| Ribbon Ratio | 3:1 media roll-to-ribbon ratio |
| Ribbon Width | 1.57 in. / 40 mm to 4.33 in. / 110 mm |
| Ribbon Core I.D. | 1 in. / 25.4 mm |
| Operating Temp. | 40° to 105°F / 5° to 40°C |
| Storage Temp. | -40°F to 140°F / -40°C to 60°C |
| Operating Humidity | 20% to 85% non-condensing |
| Storage Humidity | 5% to 85% non-condensing |
| Electrical | Auto-detectable universal power supply 100–240 VAC; 47–63 Hz |
| Media Handling | Tear-off, peel, and cutter options |
| Communications | USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth |
| Optional: 802.11a/b/g/n wireless | |
| Real-Time Clock | Yes |
| Bar Code Ratios | 2:1, 3:1, 5:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, and more |
| 2D Bar Codes | PDF417, Data Matrix, MaxiCode, QR Code, and more |
| Fonts and Graphics | Scalable and bitmap fonts |
| Unicode support for multi-language printing |
